AIRCRAFT FOR SALE
Piper Aircraft 01 Click on Photo to Enlarge

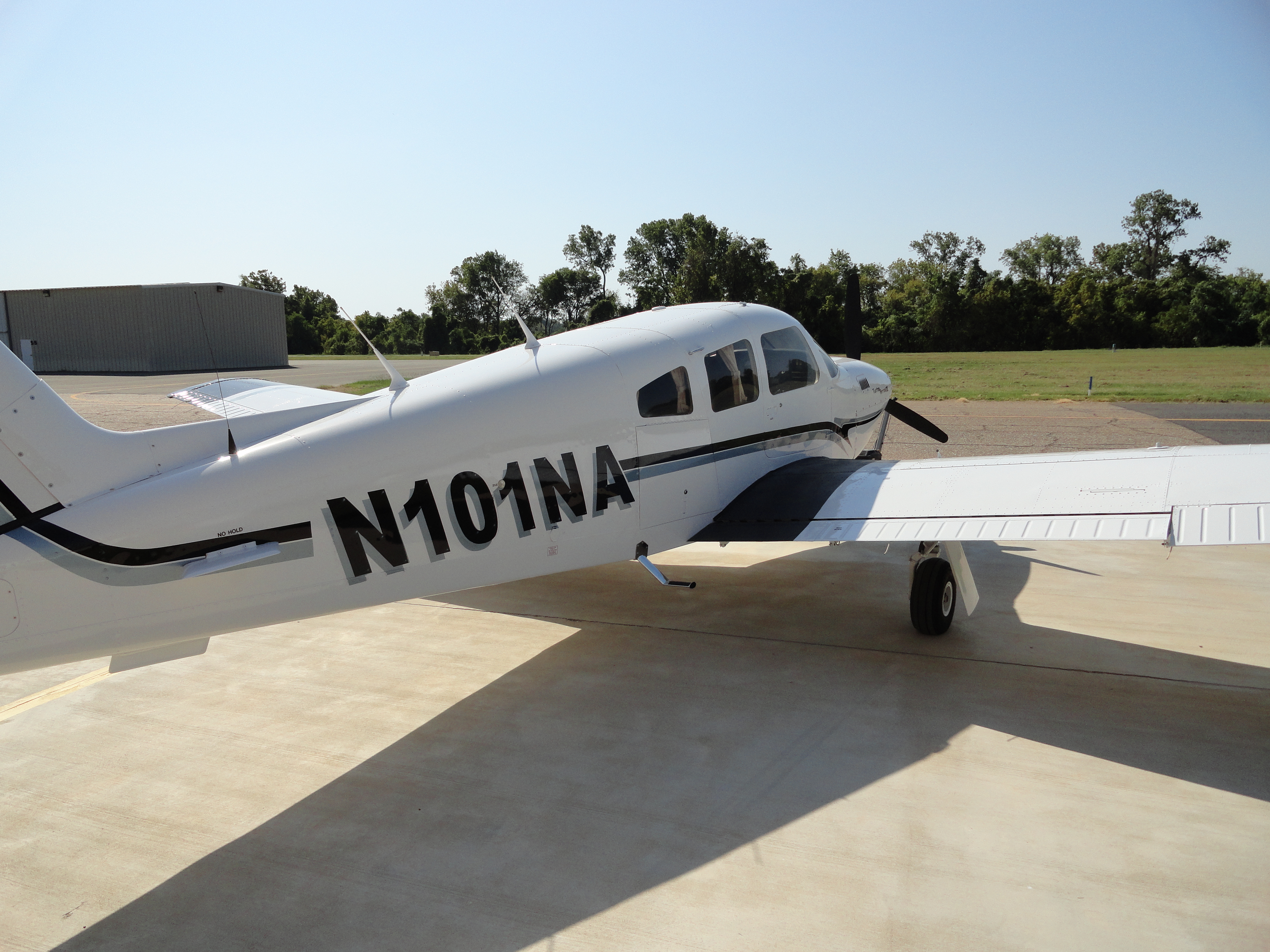

N101NA

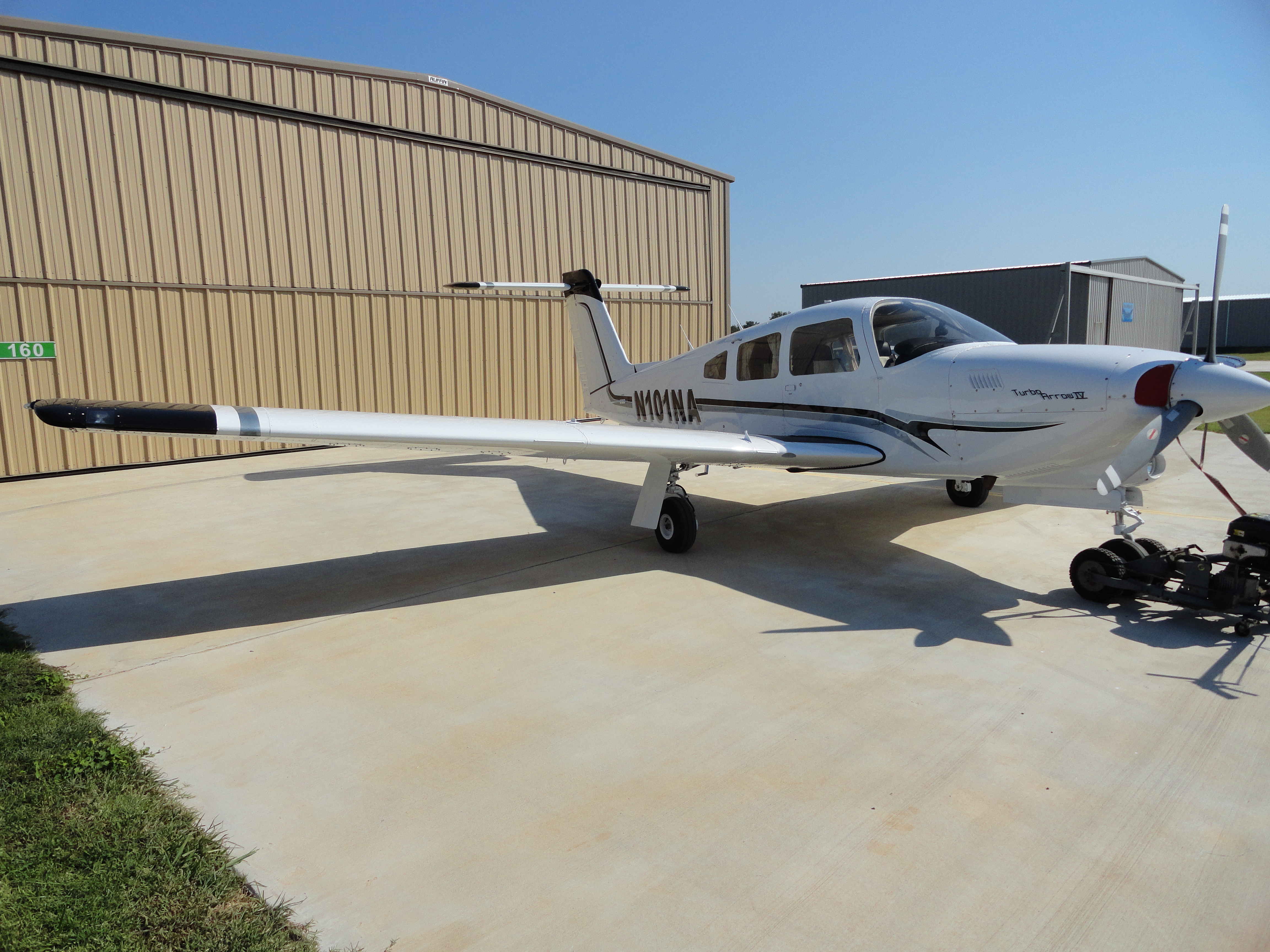

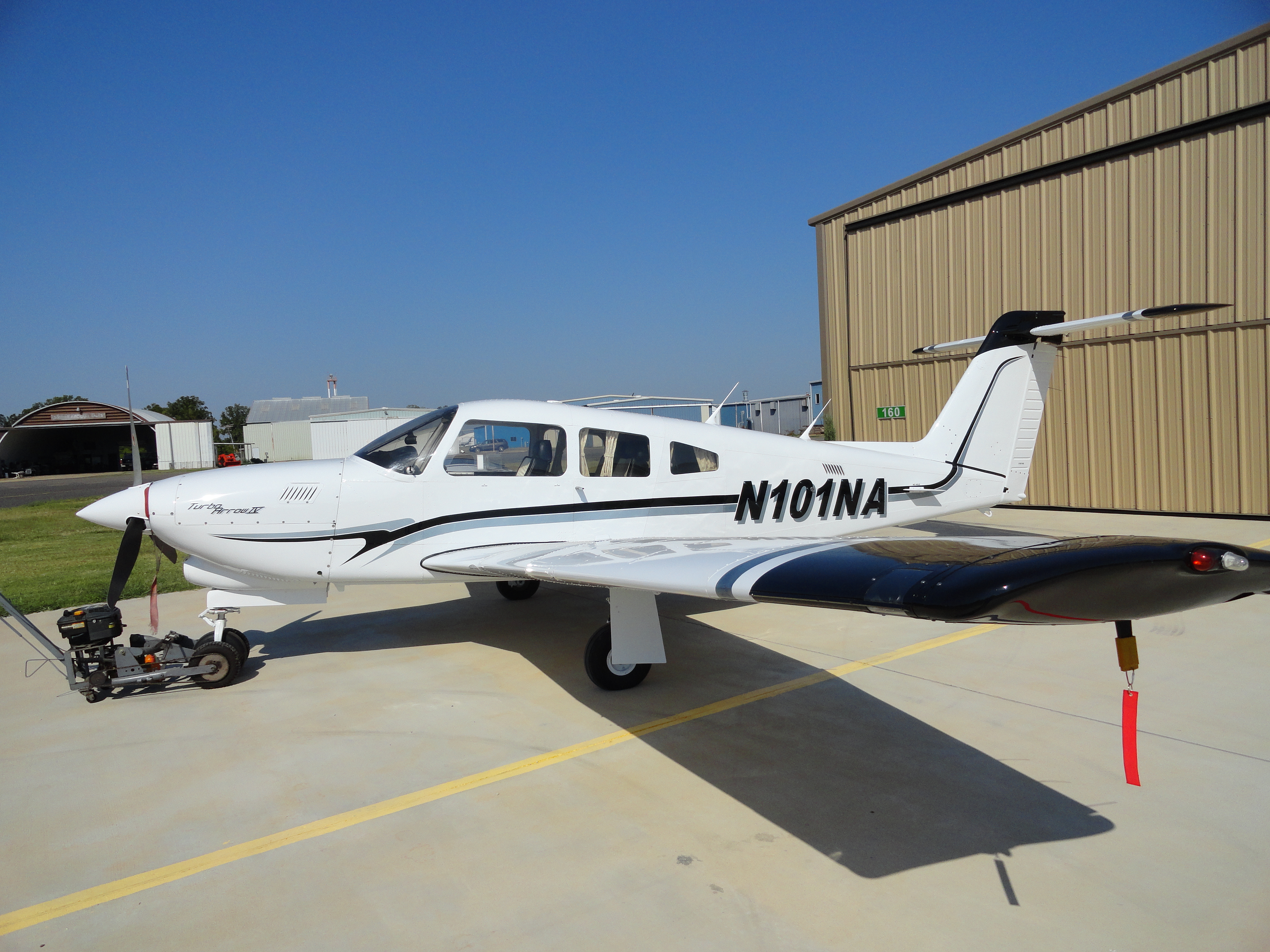

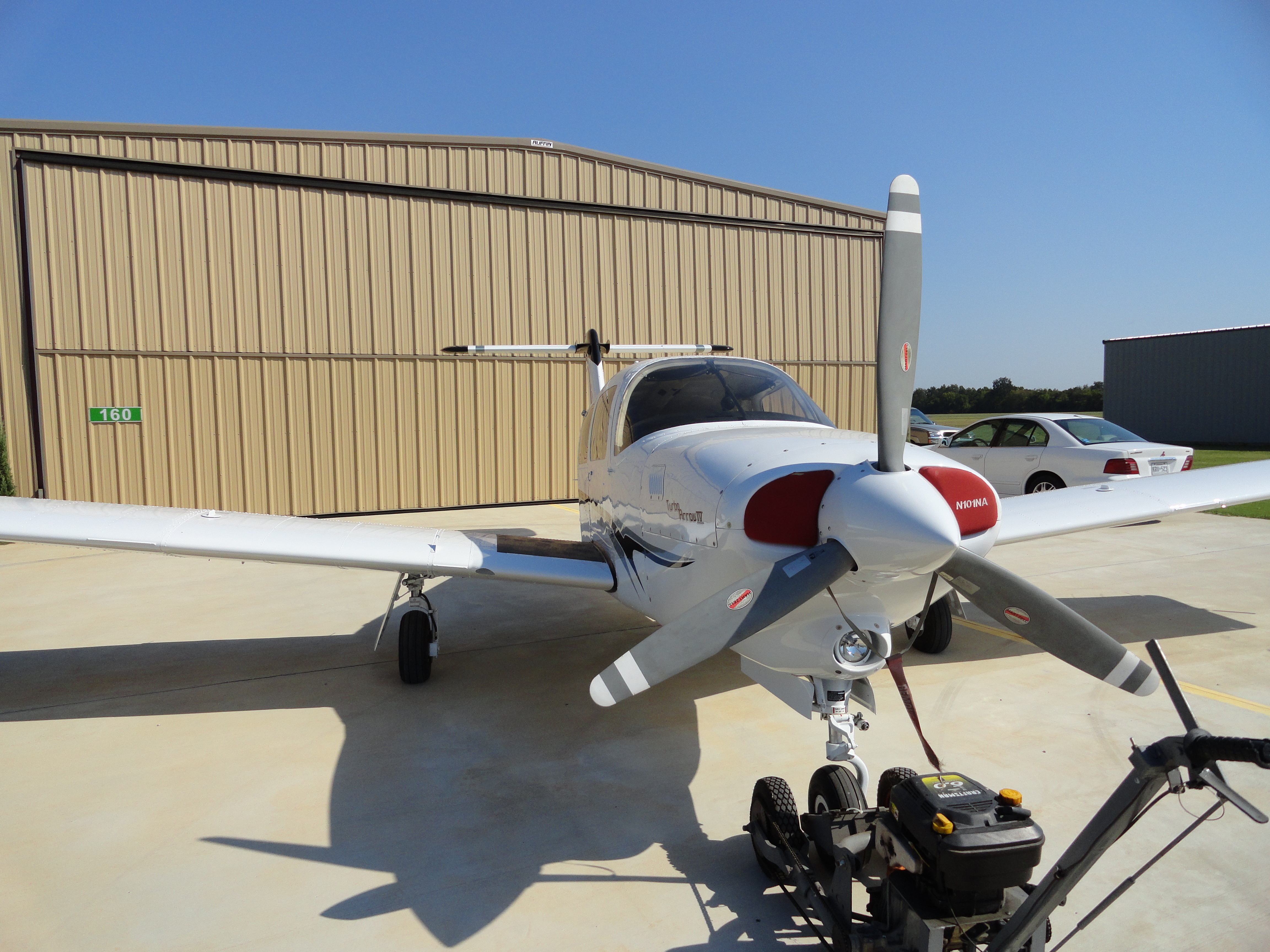

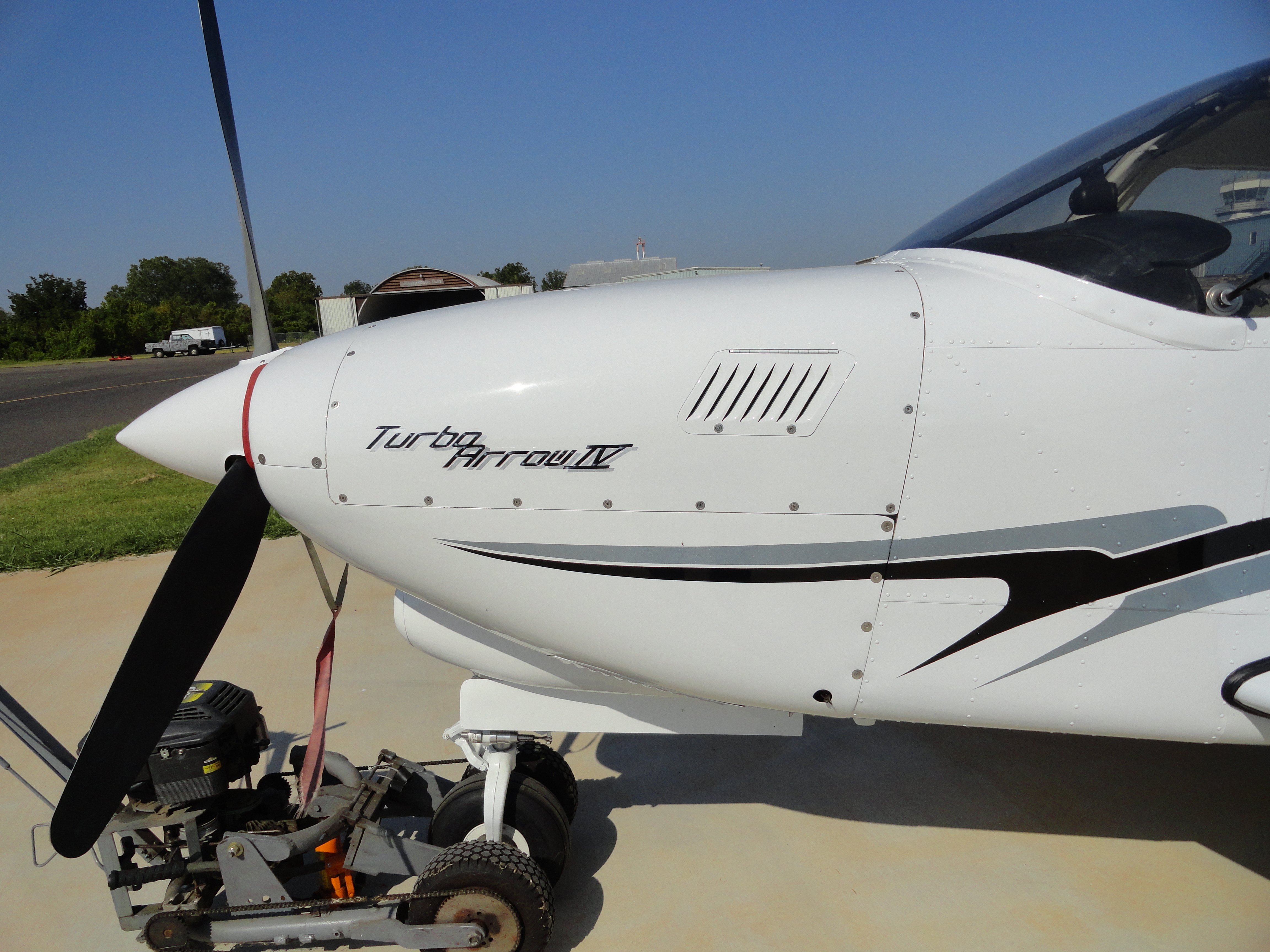

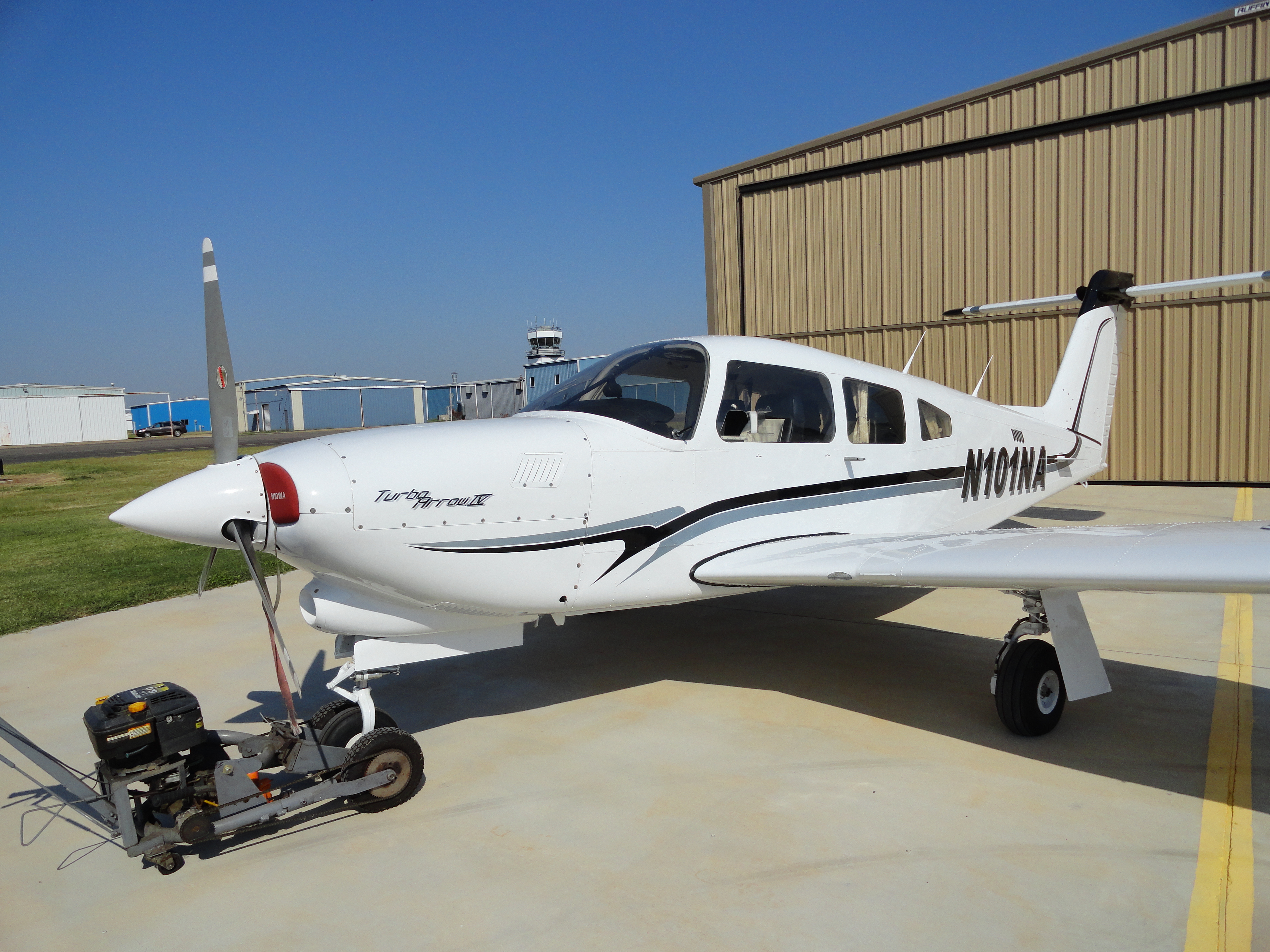

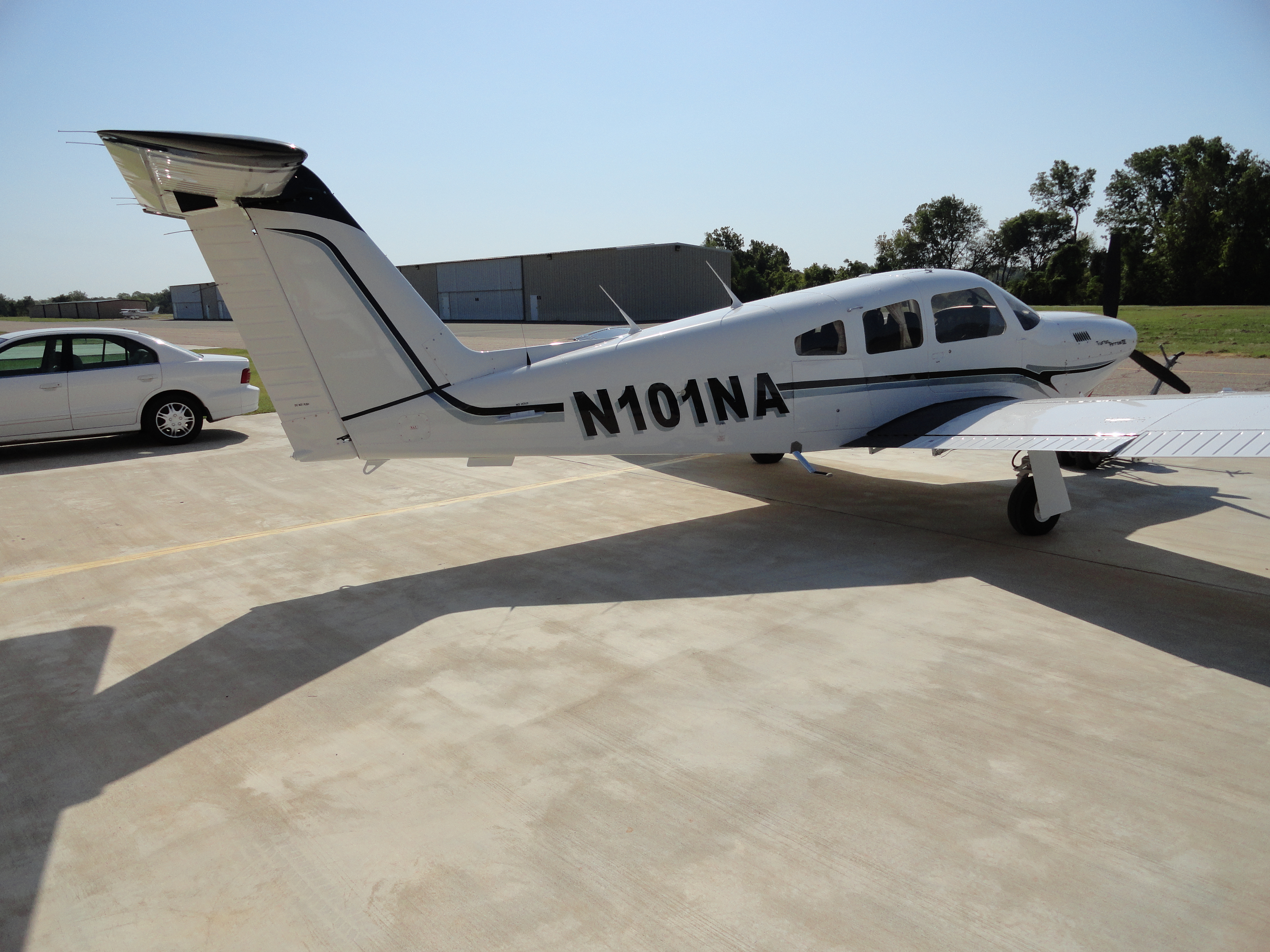

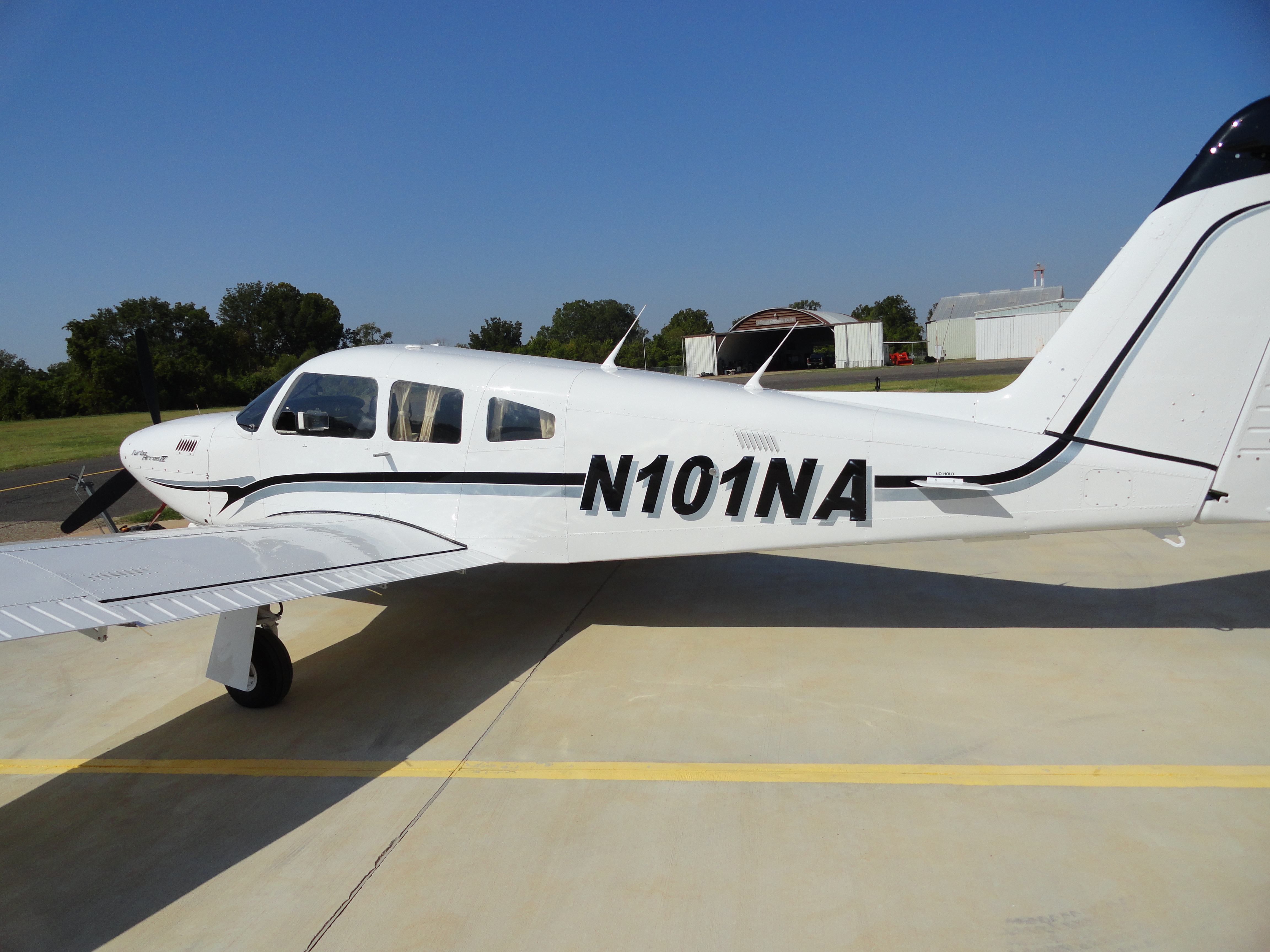

1980 Piper Turbo Arrow IV
Model PA28RT201T
S/N 28R 8031101

Total Time: 3680.7 hrs
Tach. Reading: 219.3
Engine: Cont TSIO-360 FBI (200HP) S/N 310426
TSO: 382.7 hrs(by Coastal Aviation)

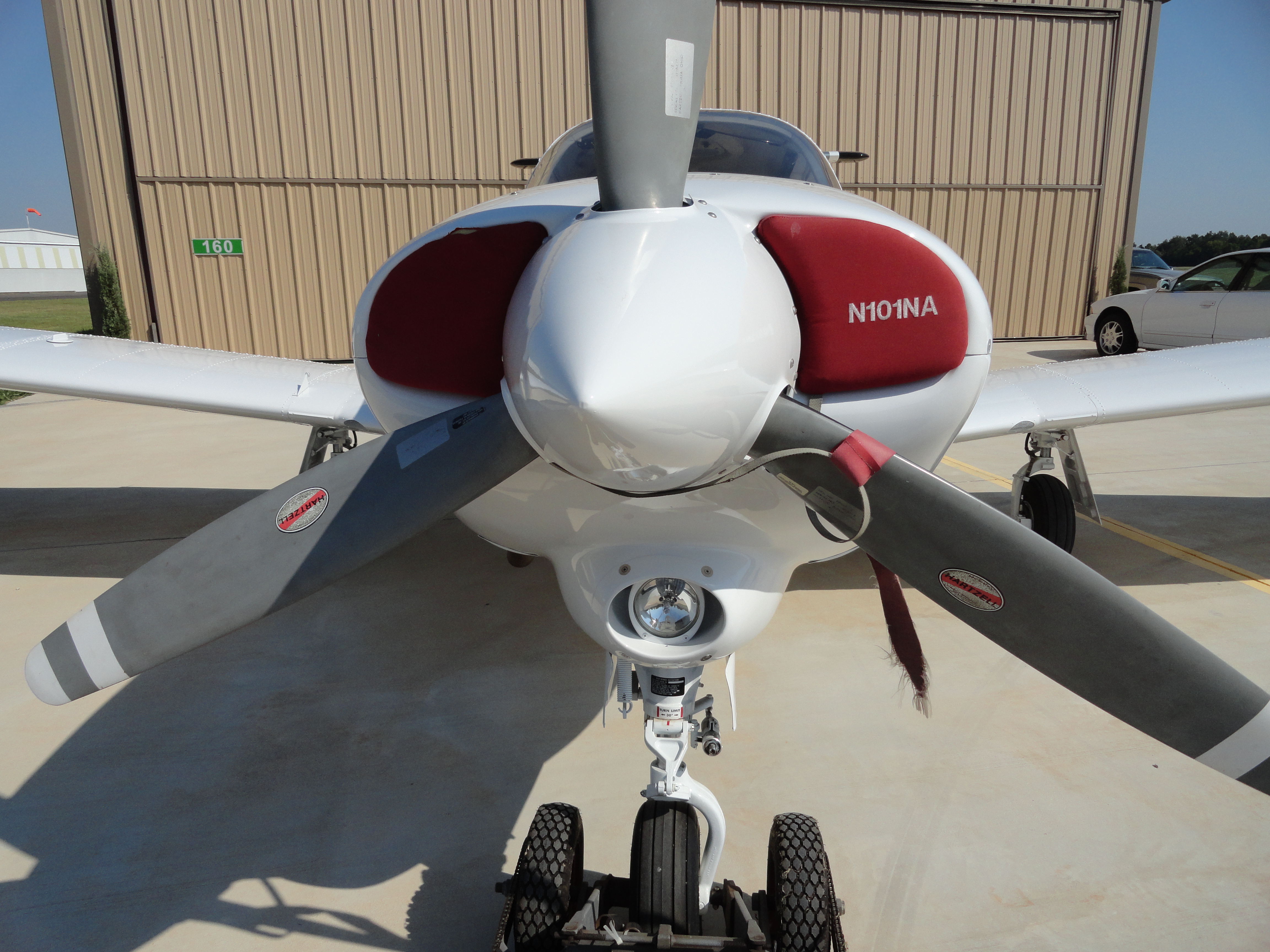

Propeller: Hartzell PHC-C3YF-1RF TSO: 35.8 hrs (3 bladed)

Last Annual: Sept. 2011
Last IFR certification: July 2011

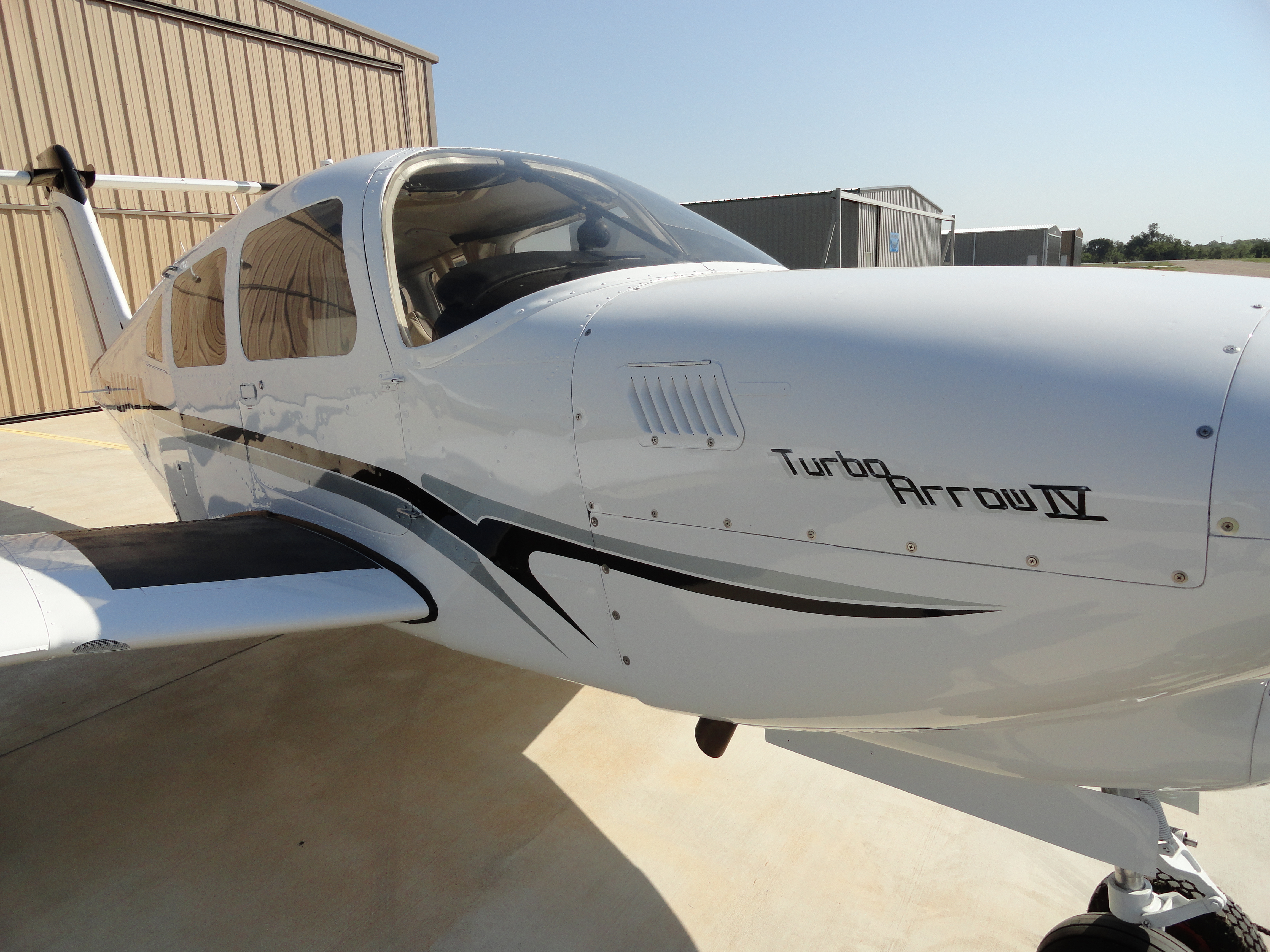

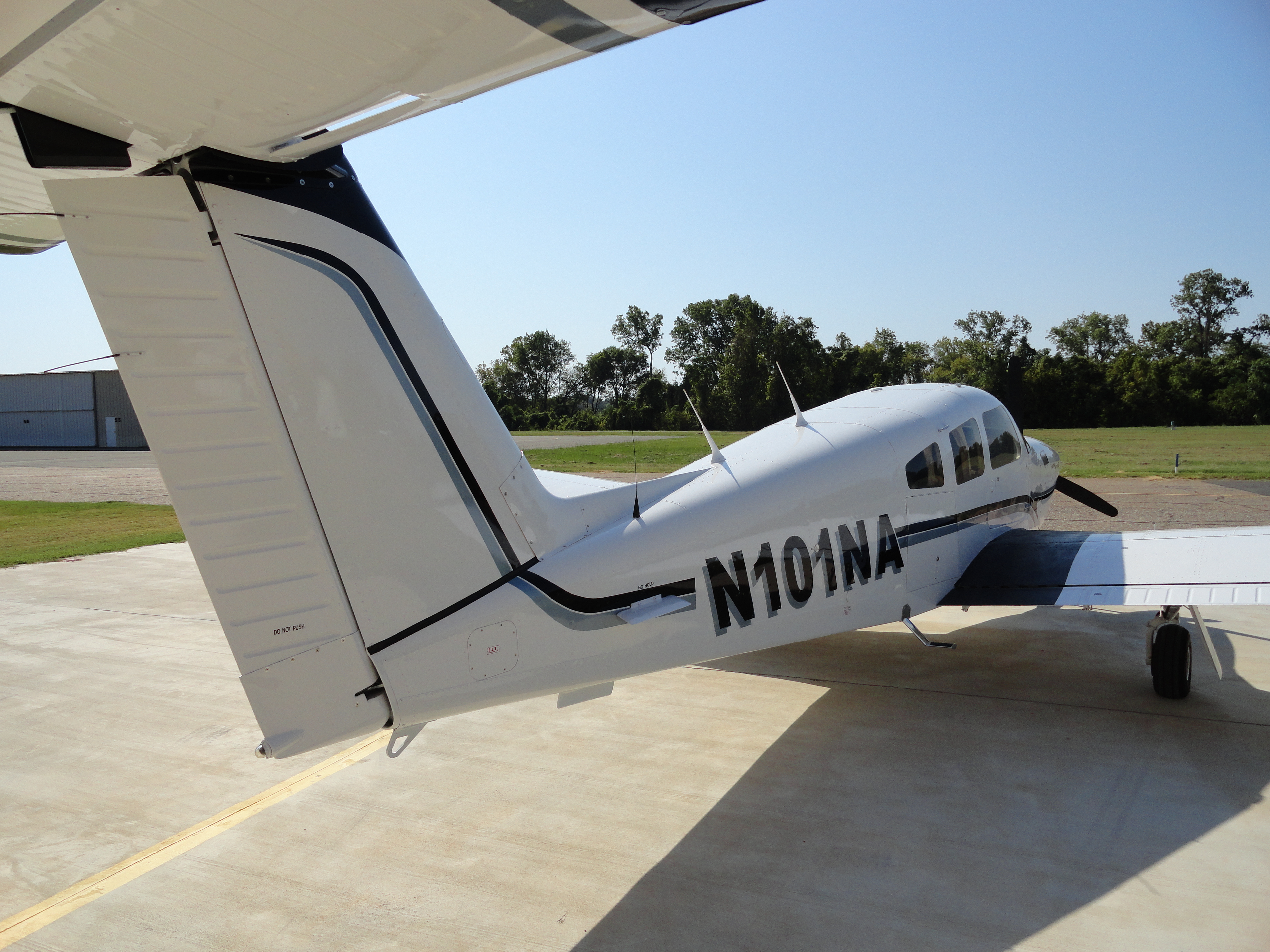

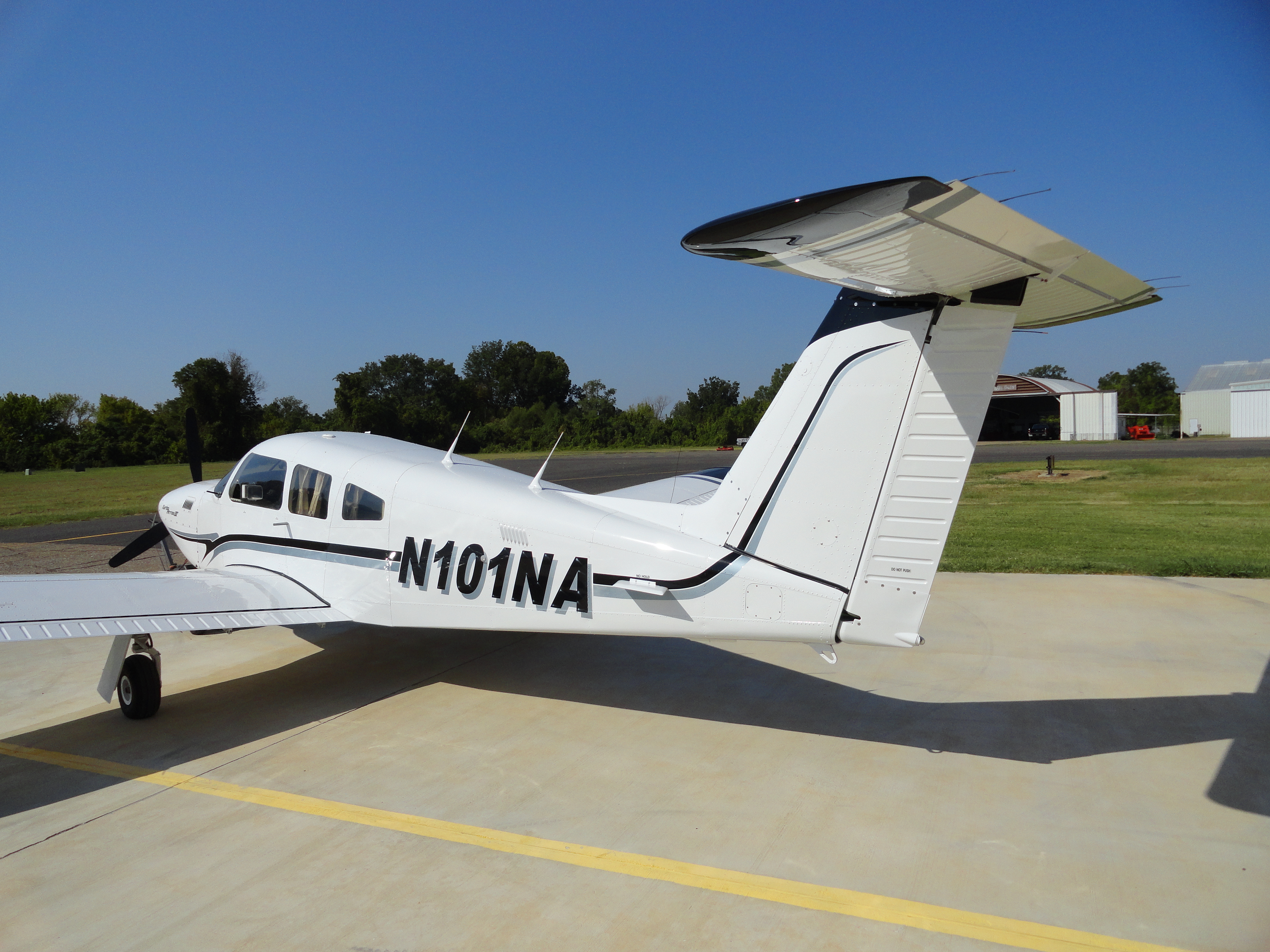

Paint: New - (PPG Jet Glow) Custom design

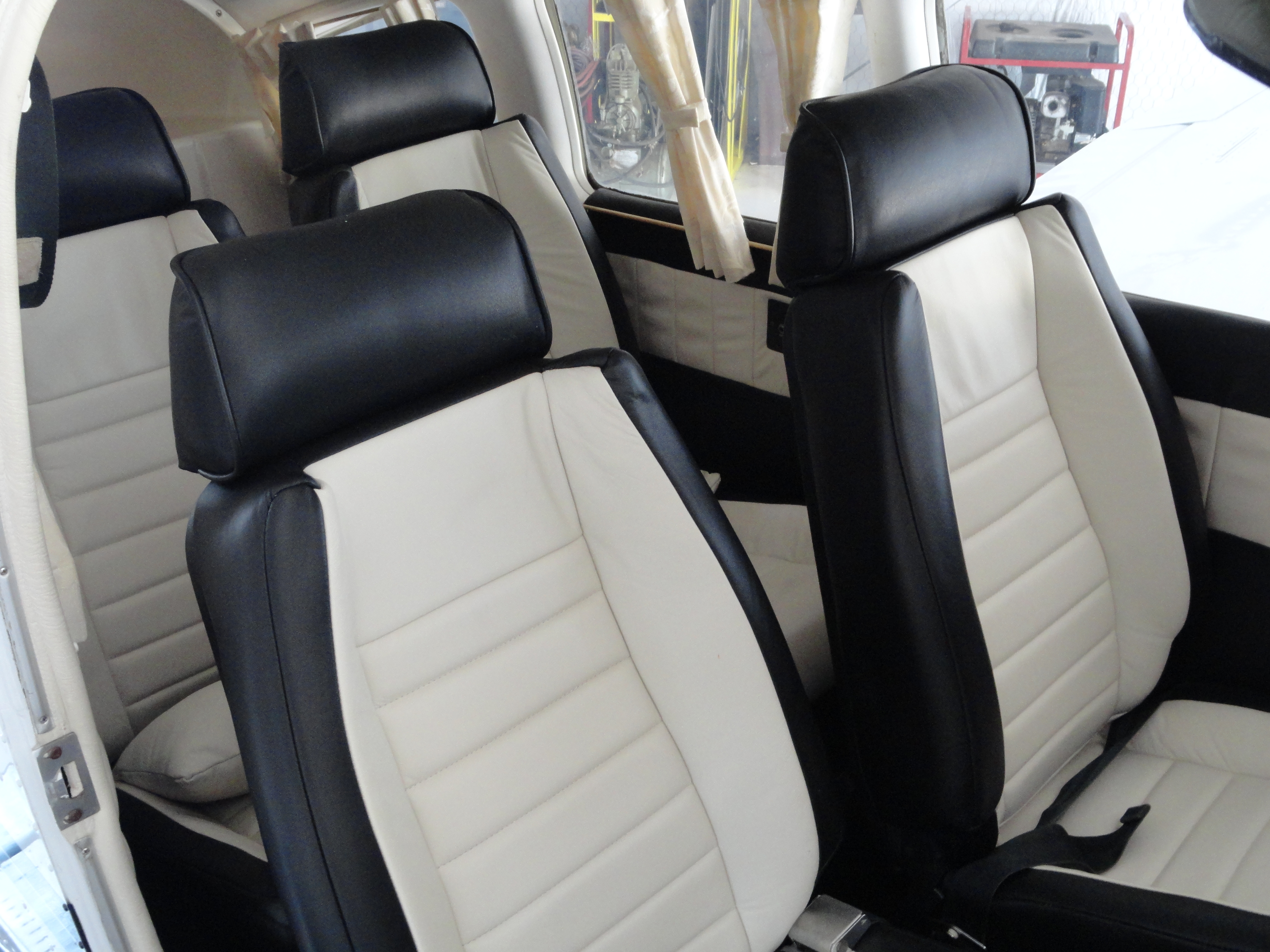

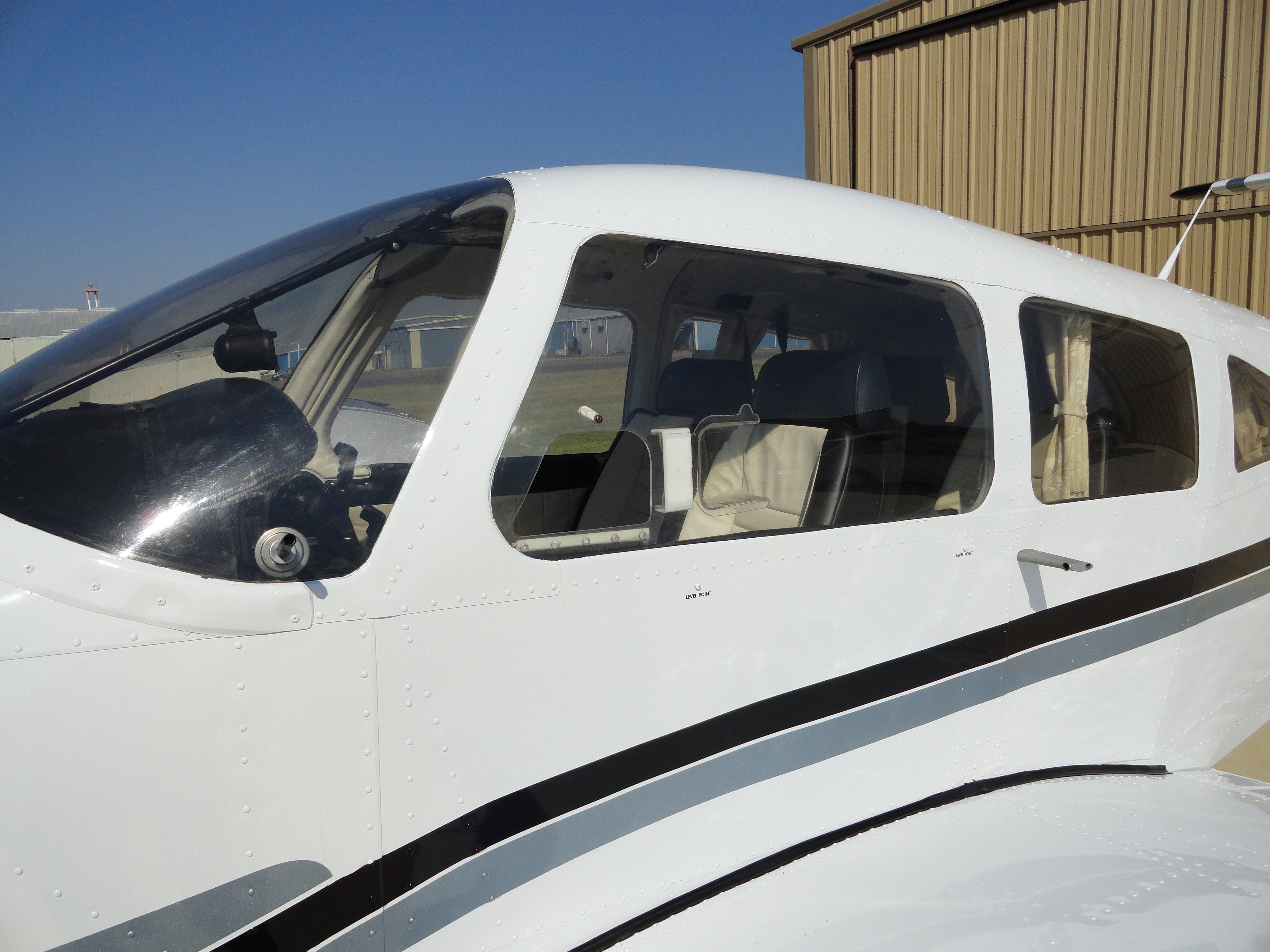

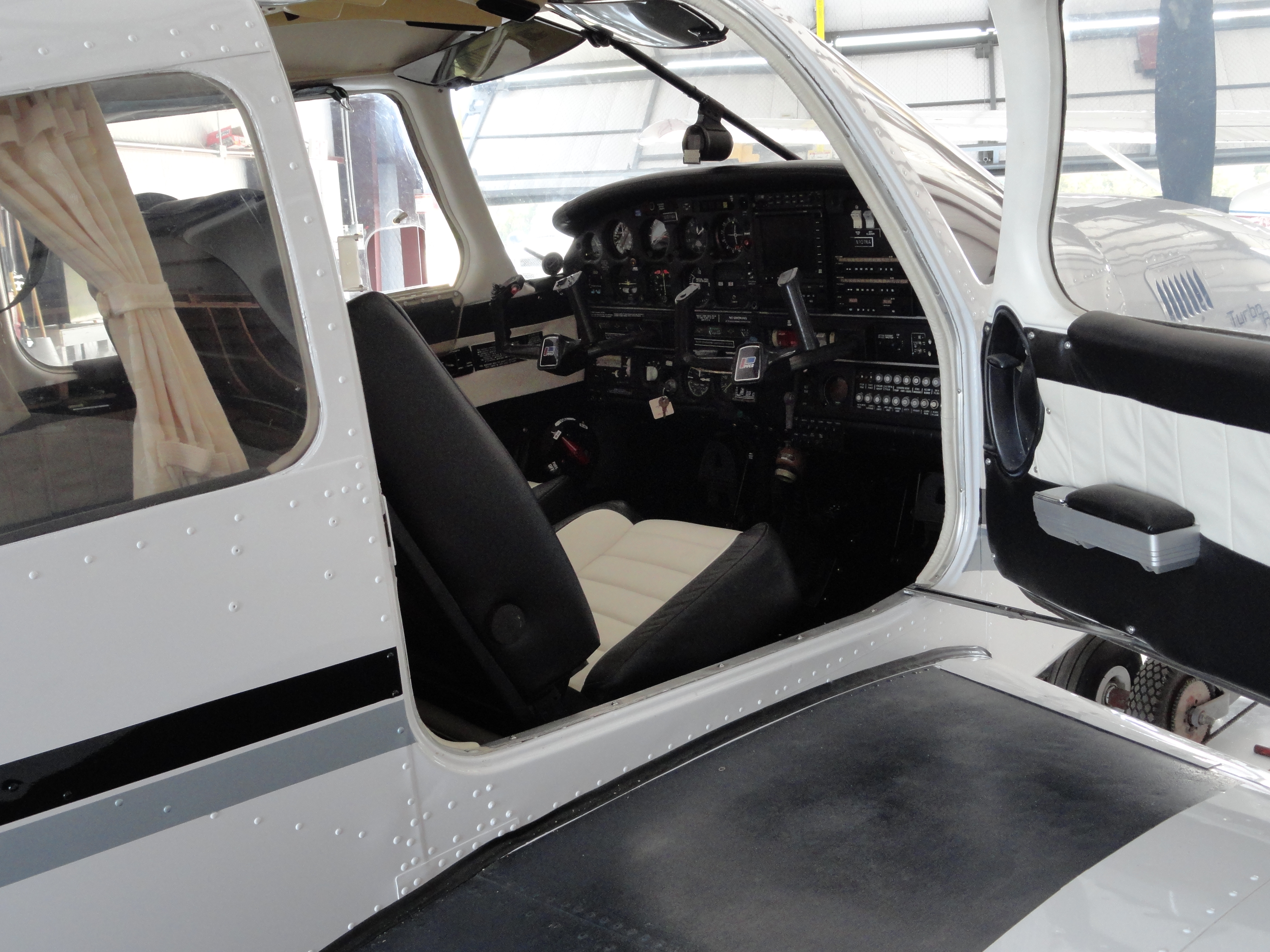

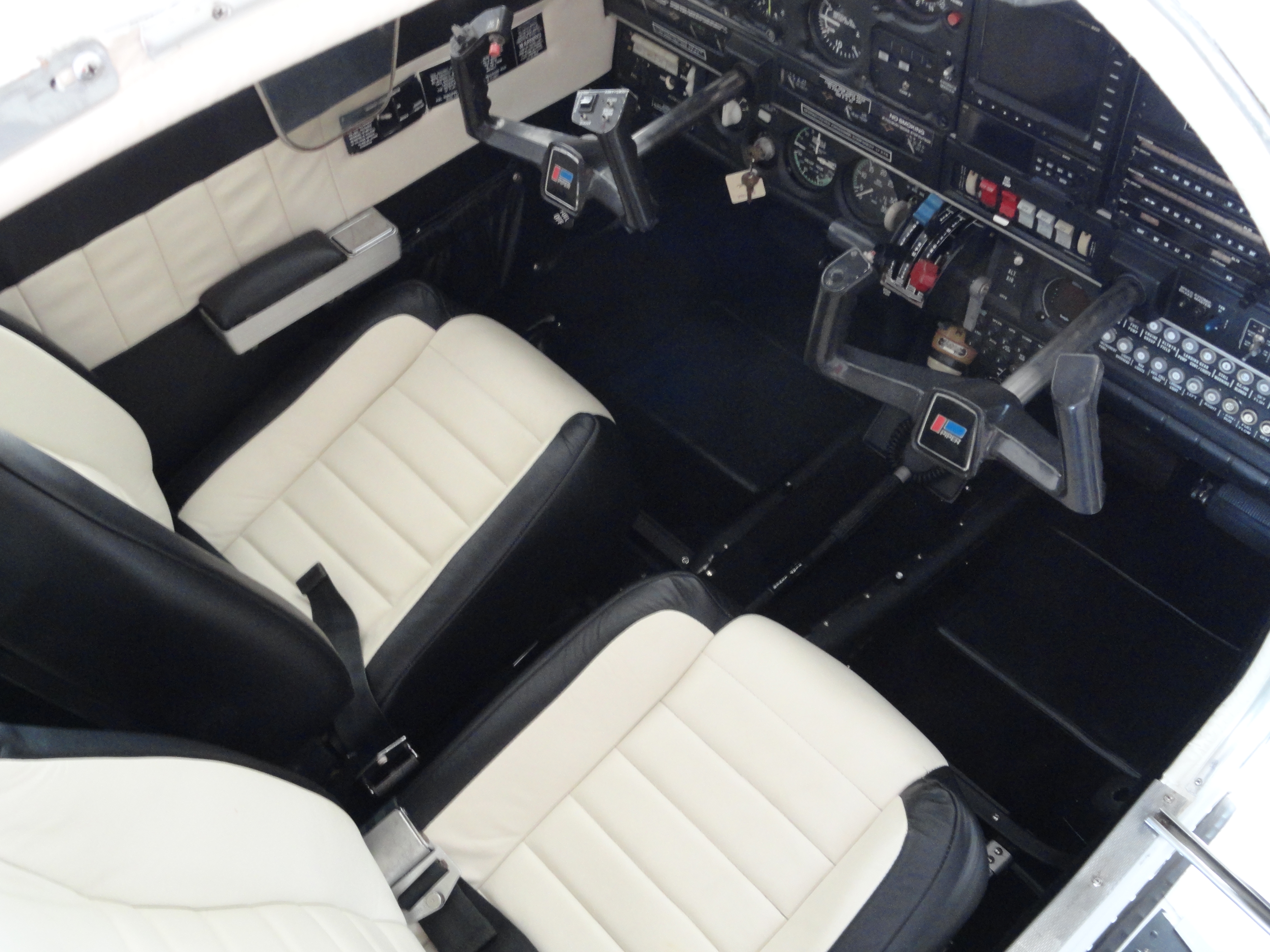

Interior: New - Leather (Black on White), Side Panels and Seats.
New Black Carpet.
Sound Proofing and Heat shield underneath Pilot/CO-Pilots feet

Options and Upgrades:
Auxiliary Primer System
All new hoses, including Fuel Tanks and Brakes
Aero Safe Electric Standby Vacuum System
Skycraft Pulse Lite system (flashing wing tips or used as landing lights)
Insight Instrument GEM-602 Engine Monitor
JPI-FS 450 Fuel Flow system (bootstrapped to GPS)
Precise Flight Speed Brake system
Kosola Single Piece Windscreen
Wing Tip Strobe system
Altimatic IIIC autopilot (Altitude Hold)
Merlyn Waste Gate system
Electric Trim
Dual Brake System

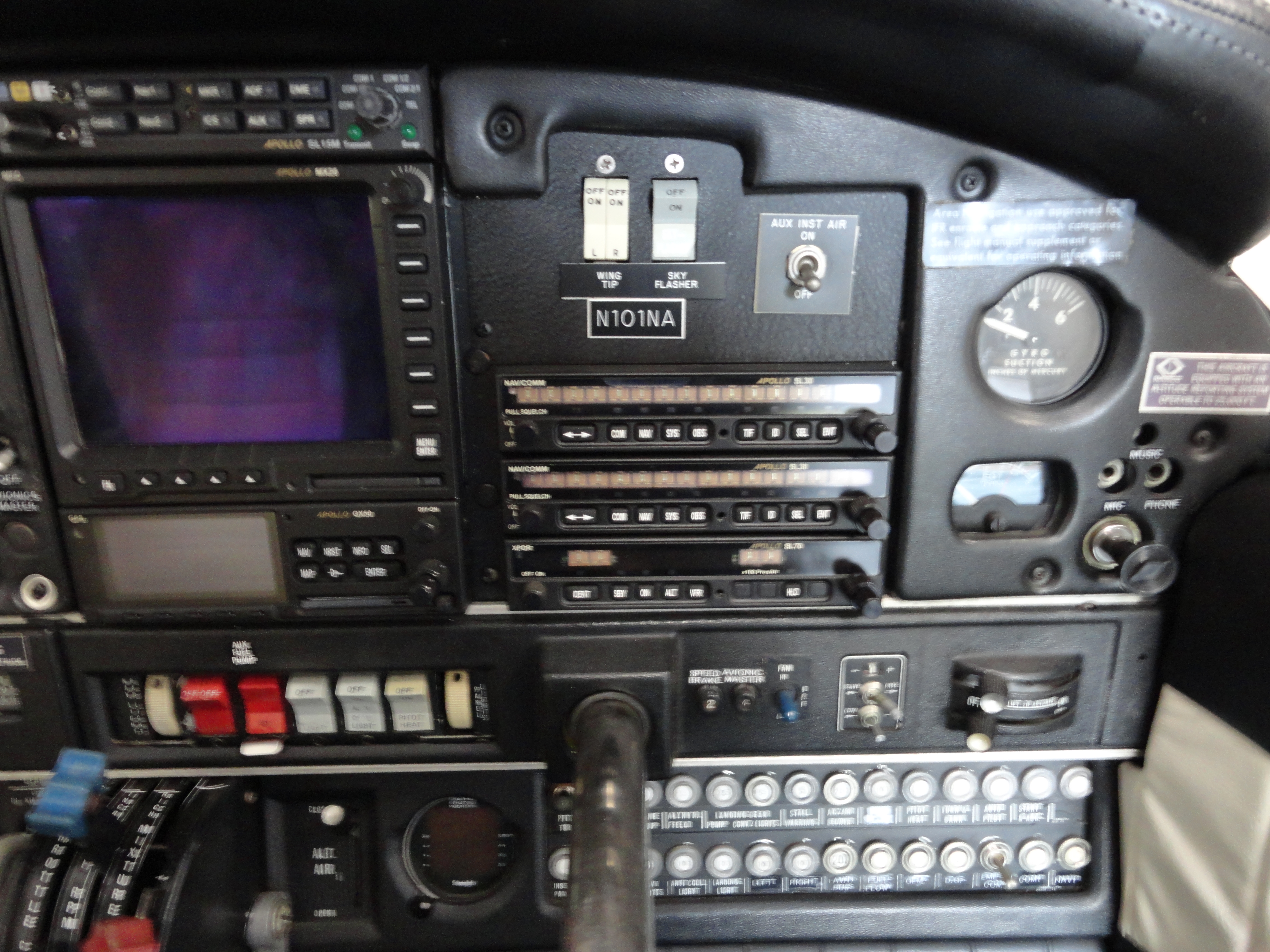

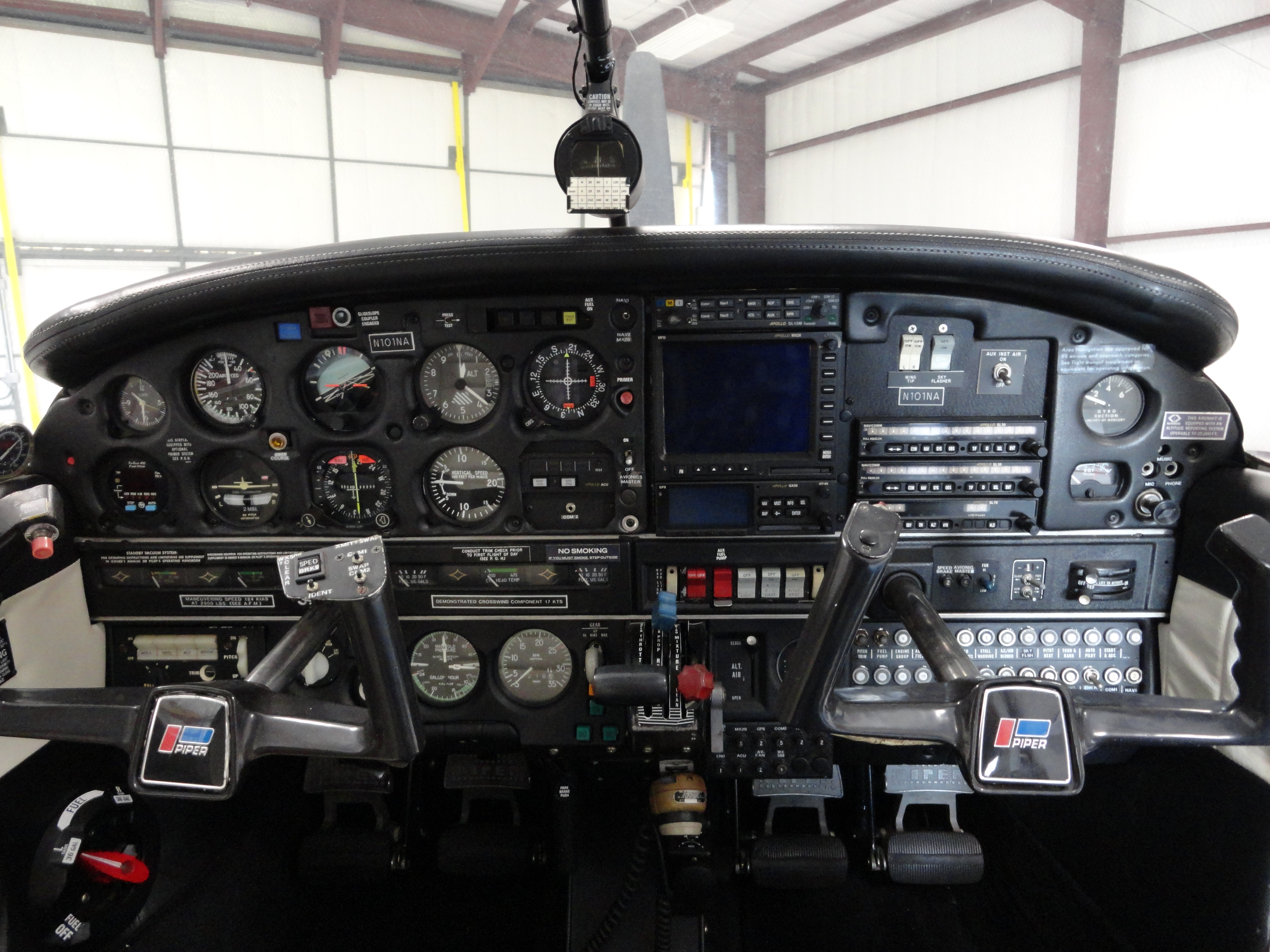

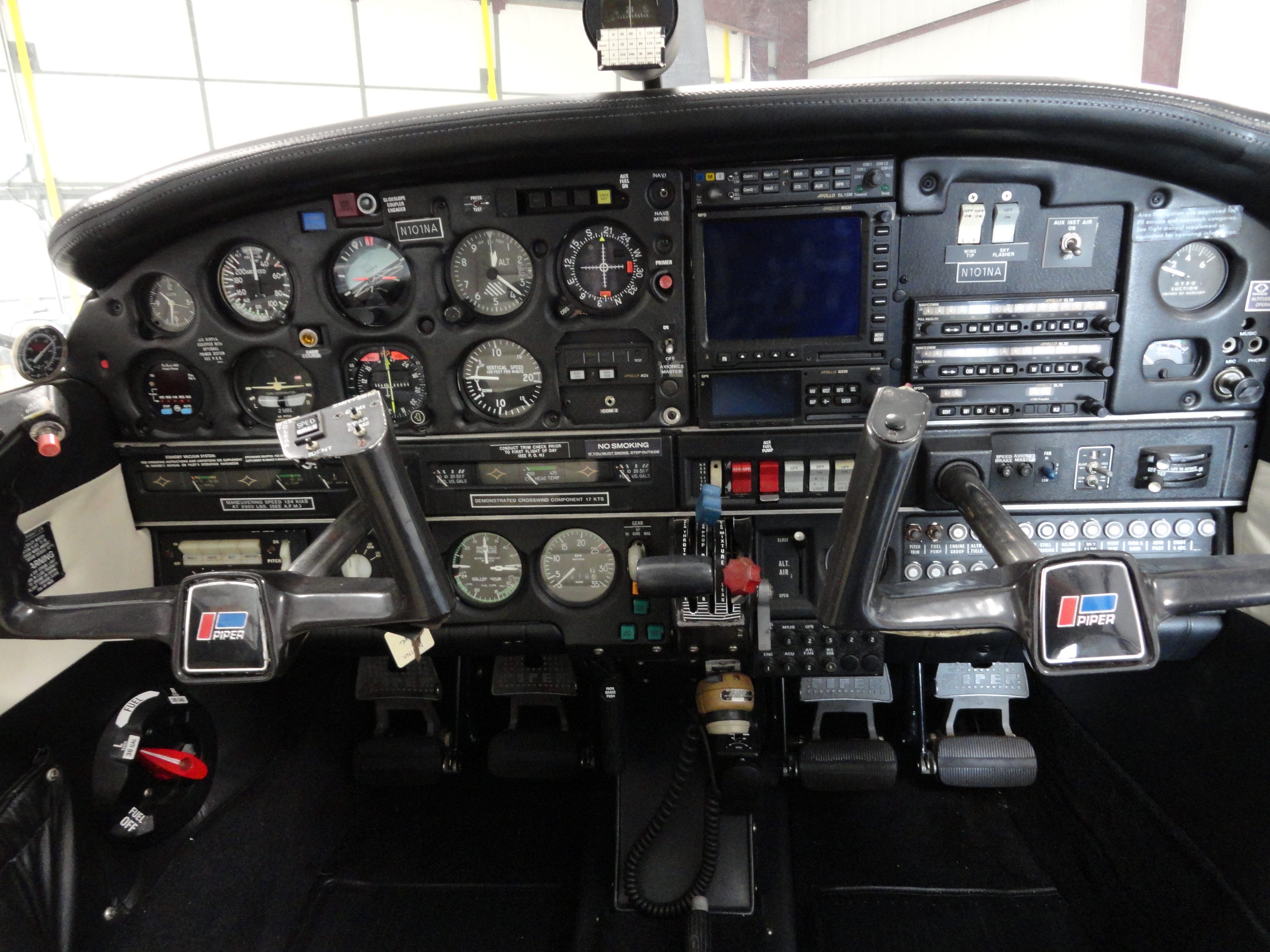

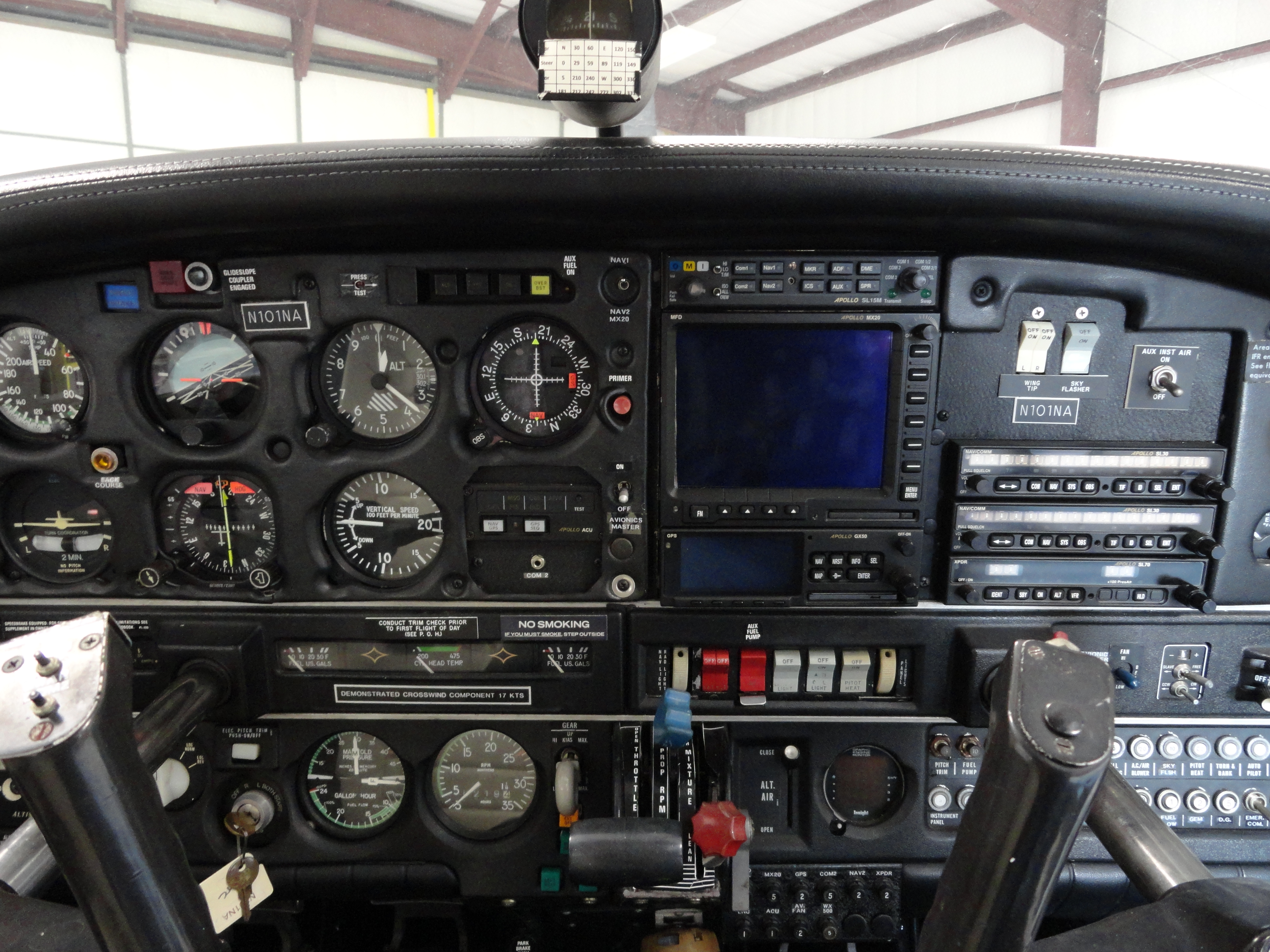

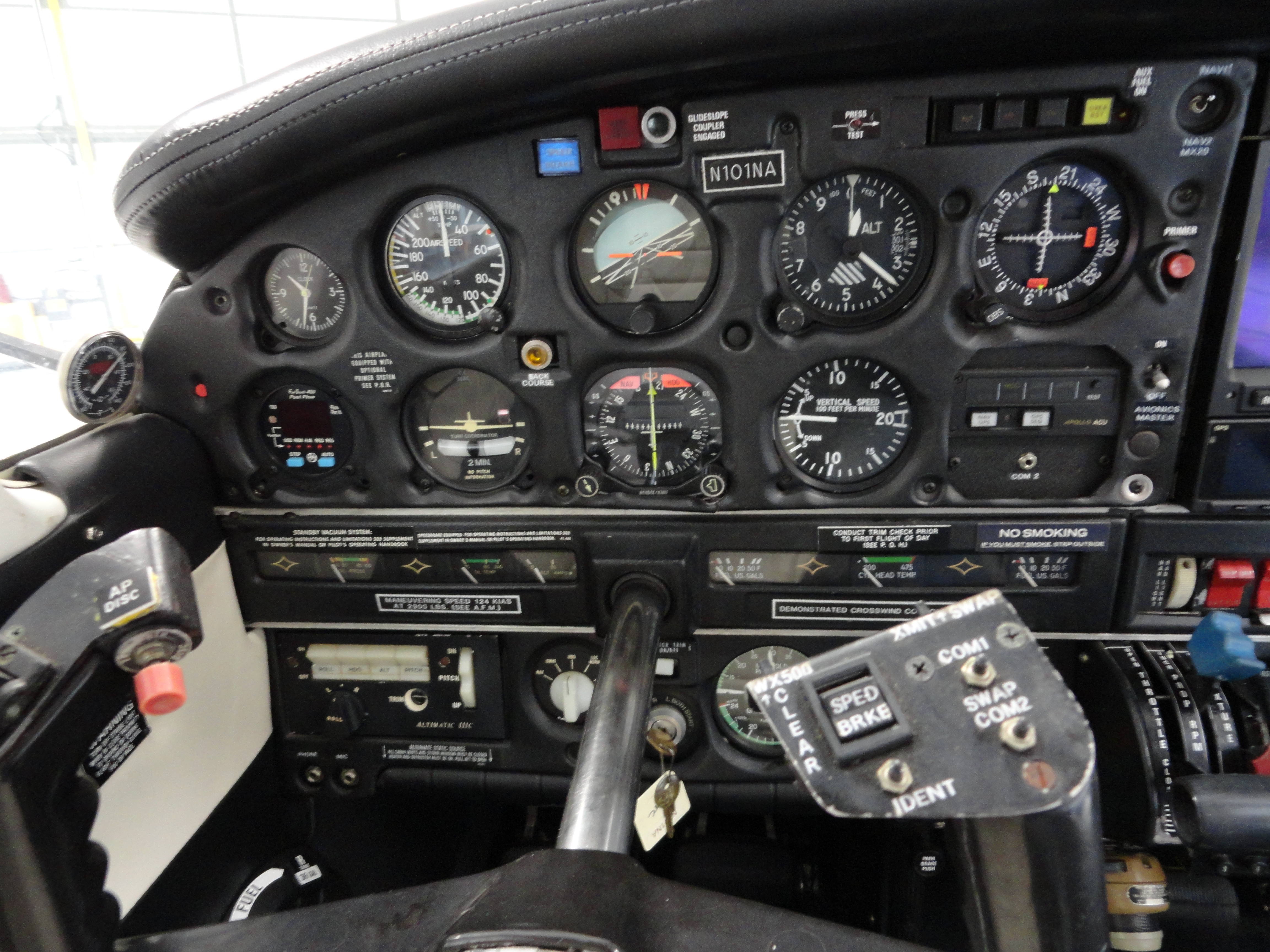

Avionics: UPSAT (Apollo/Garmin)
MX-20 MFD (new data base Aug 2011)
SL-15 Audio Panel
GX-50 GPS IFR (enroute, terminal and non–precision) New Data Base Aug 2011
SL-30 Nav/Com. 2ea (Dual Glide Slopes)
SL-70 Transponder (Certified July 2011)
MD-200 indicator
ACU (Annunciator Control Unit)
WX-500 integrated Storm Scope ( bootstrapped to MX-20)
KC-55A HSI and Remote Compass system
Control Wheel mounted PTT., Com 1,2 swap, AP and Trim disconnects, WX -500 clear
Avionics Master with emergency communication capabilities and music inputs
Blade Nav. antennas

General:
New Battery Aug. 2011
New ELT Battery Nov. 2010

Priced To Sell
Contact: Don Bethel
Dbethel650@aol.com

318-746-8139
